How to Remove Pattern Lock OPPO A12 CPH2083 in UFI | How to Dead Solution OPPO A12 CPH2083 After Format in UFI

Posted by GSM Helpful

Saturday, January 23, 2021

How to Remove Pattern Lock OPPO A12 CPH2083 in UFI | How to Dead Solution OPPO A12 CPH2083 After Format in UFI Using UFI Box you have to charge a battery with any charger and charged it by 95%. Your data is very important for so it is good to do a backup of data it may consist of contact details, important messages, emails or any other important thing which feel to be the backup in a device.

This backup can be done on another device. we have to do the backup because after a format of a device, all data will be gone and it will not be recovered. For backup in other devices, you can use another external device like hard drive, SD card or any other suitable devices. If are doing by own. do it at your own risk as we don't take any responsibility if a device is damaged

How to Remove Pattern Lock OPPO A12 CPH2083 in UFI | How to Dead Solution OPPO A12 CPH2083 After Format in UFI with UFI Box you can easily solve with this method if you are fresher technician or experienced technician in android software related if the error occurs of USB not recognized then your USB is not working. If a battery is not charged, your USB socket will not proper work and you will fail in this method. if any issues please write your questions in the comment box I will try my best to help you.

Required :

OPPO A12 CPH2083 with Good Charge Battery
UFI Box
Micro USB Cable
Computer or Laptop

Procedure :

First Remove Behind Cover to OPPO A12 CPH2083 Phone
And Also out Main Board

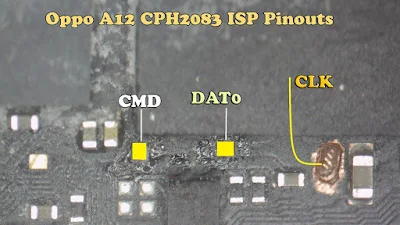

Short Jumper in the Phone Using Below Image (OPPO A12 CPH2083 Isp Pinout)

oppo A12 cph2083 ips pinouts

Credit : Hi-Tech

Now Connect Phone with UFI Box

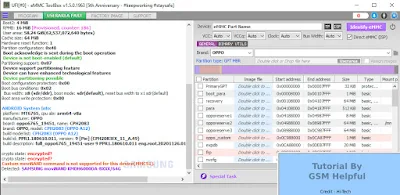

Open UFI eMMC ToolBox
Stay in eMMC GENERAL
Click on "Identify eMMc" and Wait Until Result

How to Remove Pattern Lock OPPO A12 CPH2083 in UFI | How to Dead Solution OPPO A12 CPH2083 After Format in UFI

Now Jump to USERAREA PART and Go to Special Task and Choose "Master Clear" and Wait until Completed

How to Remove Pattern Lock OPPO A12 CPH2083 in UFI | How to Dead Solution OPPO A12 CPH2083 After Format in UFI

Again go to Special Task and Choose "Clear Frp" and Wait until Completed

If any Problem Using this Method Just Write Down Comment on Below Comment box

OPPO A12 CPH2083 After Format Dead Solution in UFI

REMOVE LANG

How to Remove Pattern Lock OPPO A12 CPH2083 in UFI | How to Dead Solution OPPO A12 CPH2083 After Format in UFI

Credit : Hi-Tech
