How to Remove Pattern Lock & Frp Lock Vivo V15 Pro UFI

Posted by GSM Helpful

Saturday, July 11, 2020

How to Remove Pattern Lock Vivo V15 Pro Using UFI Box you have to charge a battery with any charger and charged it by 95%. Your data is very important for so it is good to do a backup of data it may consist of contact details, important messages, emails or any other important thing which feel to be the backup in a device.

This backup can be done on another device. we have to do the backup because after a format of a device, all data will be gone and it will not be recovered. For backup in other devices, you can use another external device like hard drive, SD card or any other suitable devices. If are doing by own. do it at your own risk as we don't take any responsibility if a device is damaged

How to Remove Pattern Lock Vivo V15 Pro with UFI Box you can easily solve with this method if you are fresher technician or experienced technician in android software related if the error occurs of USB not recognized then your USB is not working.if a battery is not charged, your USB socket will not proper work and you will fail in this method. if any issues please write your questions in the comment box I will try my best to help you.

Download Vivo V15 Pro DUMP File

Required :

Vivo V15 Pro with Good Charge Battery
UFI Box
Micro USB Cable
Computer or Laptop

Procedure :

First Remove Behind Cover in Vivo V15 Pro Phone
And Also out Main Board

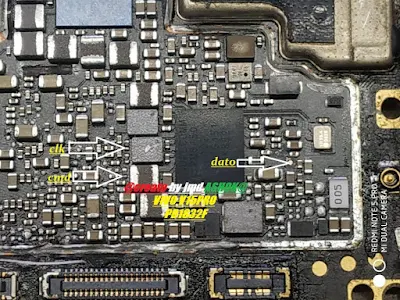

Short Jumper in the Phone Using Below Image

Vivo V15 Pro ISP Test Point

Now Connect Phone with UFI Box
Open UFI Box
Select Brand "OPPO"
Check "Direct eMMC (ISP)"
Then Click on "Identify eMMc"

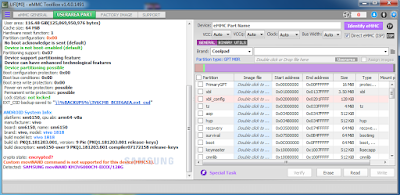

After that You Can See Below Type Result Which is Phone Successfully Connect with UFI Box

How to Remove Pattern Lock Vivo V15 Pro UFI

Go to USERAREAPART
Now Click on Special Task ► Factory Reset

How to Remove Pattern Lock Vivo V15 Pro UFI

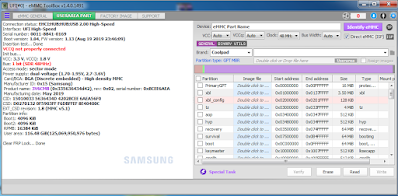

Check Again Final Read Info

How to Remove Pattern Lock Vivo V15 Pro UFI

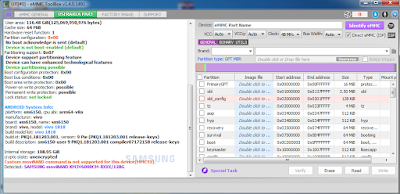

Format Successfully Screenshot

Now Click on Special Task ► Clear FRP Lock

How to Remove Pattern Lock Vivo V15 Pro UFI

You are done

If any Problem Using this Method Just Write Down Comment on Below Comment box
