REALME C2 RMX 1945 Pattern Unlock With UFI Box

Posted by
31 March 2020
Sponsored Links
If want to Remove REALME C2 RMX 1945 Pattern & Frp Unlock can try to repair it by your self have to charge a battery with any charger and charged it by 95%. Your data is very important for so it is good to do a backup of data it may consist of contact details, important messages, emails or any other important thing which feel to be the backup in a device. This backup can be done on another device. we have to do the backup because after a format of a device, all data will be gone and it will not be recovered. For backup in other devices, you can use another external device like hard drive, SD card or any other suitable devices. If are doing by own. do it at your own risk as we don't take any responsibility if a device is damaged

REALME C2 RMX 1945 Pattern Unlock & Frp you can easily solve with this method if you are fresher technician or experienced technician in android software related if the error occurs of USB not recognized then your USB is not working.if a battery is not charged,your USB socket will not proper work and you will fail in this method. if any issues please write your questions in the comment box I will try my best to help you.

Here share post for android phone related which software issues you can easy solve using this method for free some post required box and some for free which you can solve like software related, Pattern lock, Frp lock (Bypass google account) for that you to required which in mention below in required connect with us on YouTube channel, Facebook page, Twitter, Google Plus social account you get notification of uploaded video and post

Required :

  • REALME C2 RMX 1945 with Good Charge Battery
  • UFI BOX
  • Micro USB Cable
  • Computer or Laptop

Procedure :

  • Open Phone and our Board and Solder Jumper Using Below image
realme-c2-rmx1941-isp-pinout

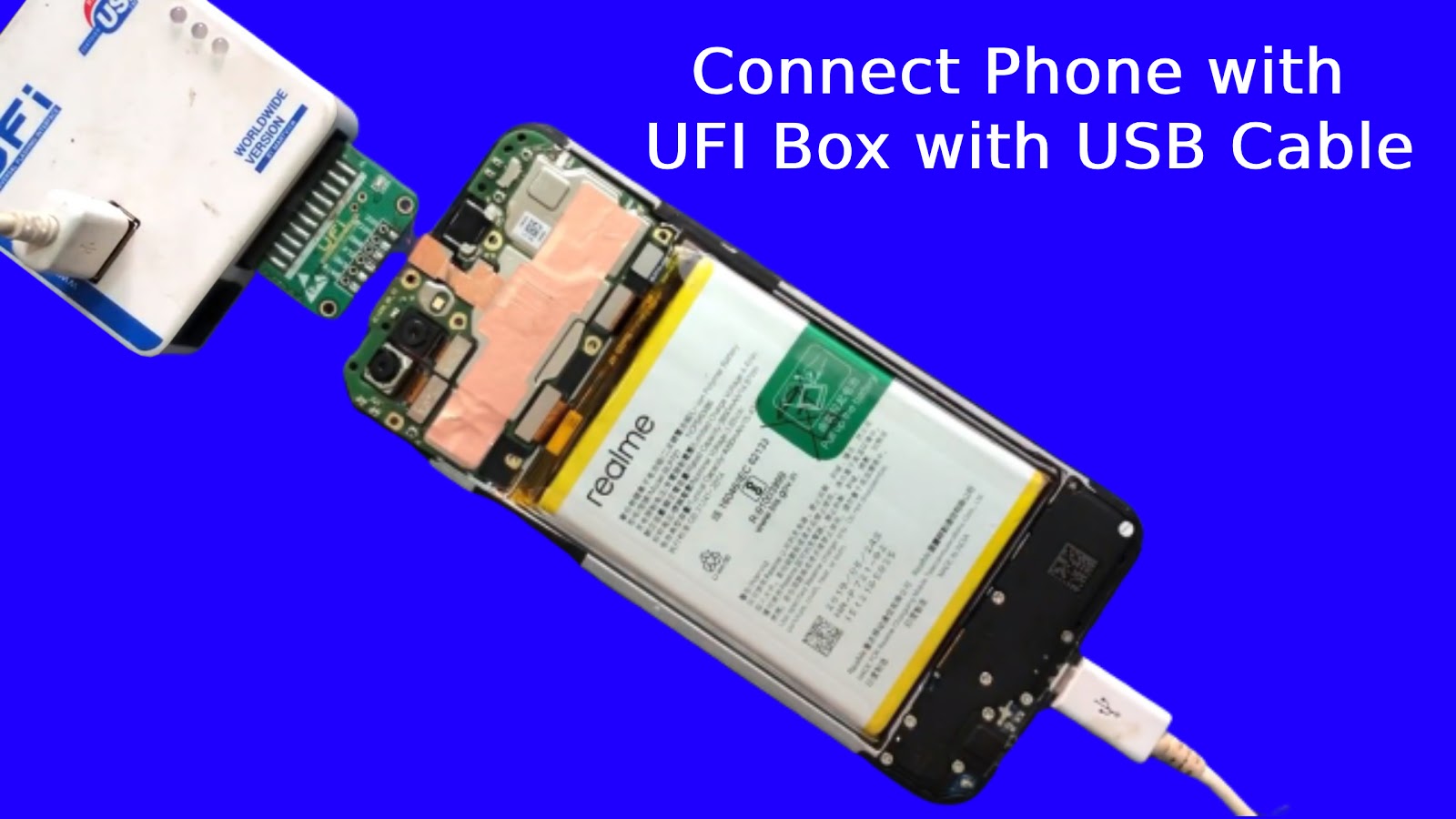

  • Connect Phone With UFI Box with USB Cable Without Battery Check Below Image (Note : Attach USB Cable on UFI Box and Connect in the Phone)
REALME-C2-RMX-1945-Pattern-Unlock

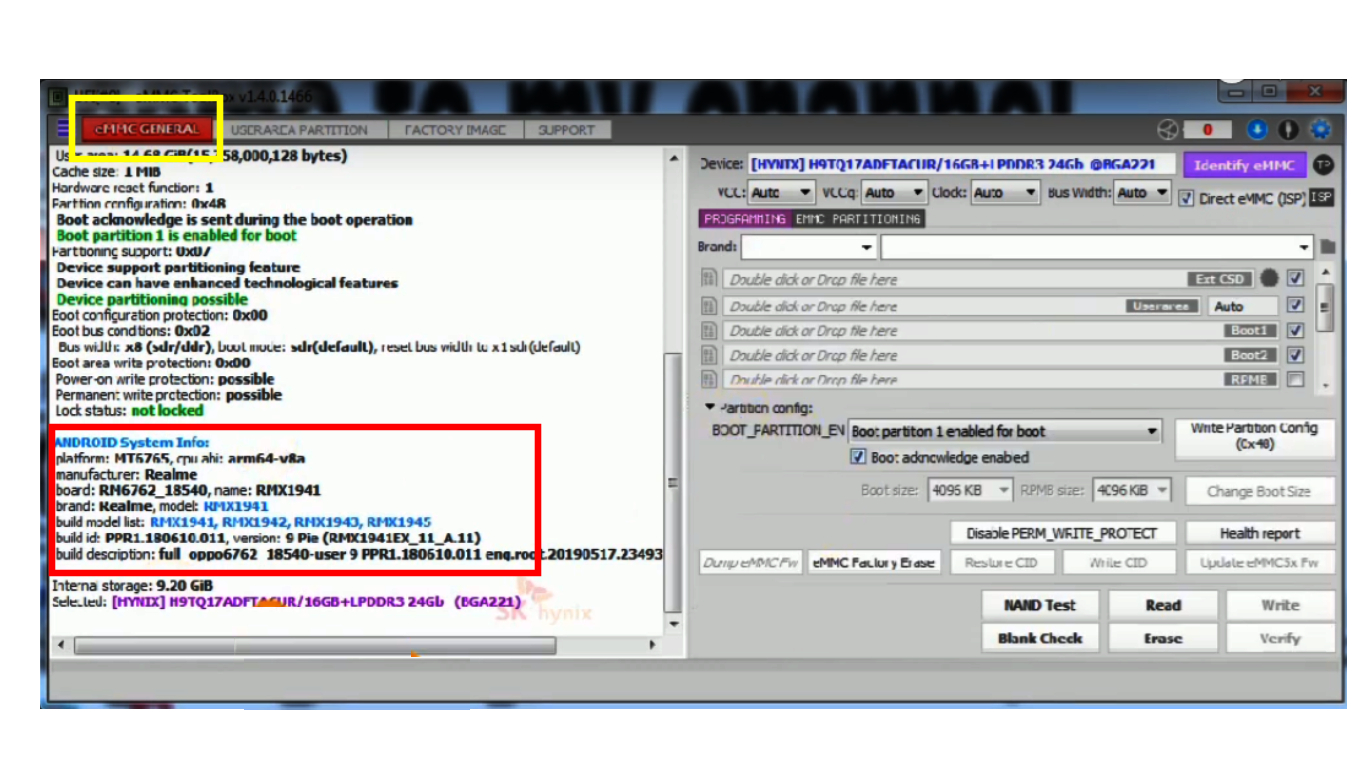

  • Open UFI Box then you can see Android System Info Which are You have to Connect Phone
REALME-C2-RMX-1945-Pattern-Unlock

  • Now Choose "eMMC GENERAL" Option for get Information which are phone Connect Phone with CPU
REALME-C2-RMX-1945-Pattern-Unlock

  • Click on "Clock" and Select "48MHz"
REALME-C2-RMX-1945-Pattern-Unlock

  • Select "Special Task"
REALME-C2-RMX-1945-Pattern-Unlock



  • Select "Factory reset" for Remove Pattern Lock, PIN Lock, Finger Lock and Screen Lock
REALME-C2-RMX-1945-Pattern-Unlock
  • Again Click on "Special Task" and Choose "Clear FRP Lock" If not remember Gmail Email Id or Password
REALME-C2-RMX-1945-Pattern-Unlock

For More Information see Below video
    Full Tutorial in video

    Screenshot :
