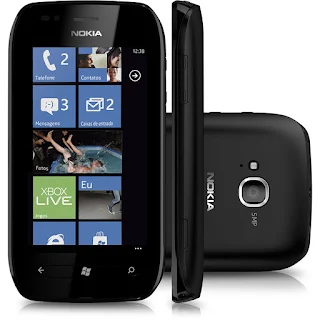

Nokia Lumia 710 RM-803 Flash done with ATF box

Posted by
11 December 2015
Sponsored Links

Must Read Users:
This tutorial it's easy for know better about ATF box but it is also difficult to don't know how to do it so first read carefully full tutorial after use this because if you don't read this tutorial so you'll distress so first understand what is say this tutorial after follow step by step. There are many questions here for you can't flash. 1 - Must be installed driver in Computer or Laptop, 2 - Must be working On/Off button, 3 - Must be working Micro usb cable, 4 - Must be good working device usb socket, 5 - Must be work your Computer or Laptop usb socket, 6 - Must be charged device battery up to 80%, so carefully all are required must be working well for flash so you can easy flash using this tutorial, because many technician has question about flash error and also remember using this tutorial first make data backup full phone like contacts, photos, videos, whatsapp, notes, etc.

Nokia Lumia 710 Flash file Download

Required for flash:

  • Nokia Lumia 710 RM-803 device with well battery charged
  • ATF box (you can use other box but must be there flash option)
  • Micro usb cable (must be working)
  • Computer or Laptop

Procedure:

  • Connect ATF Box with Computer or Laptop
  • Open ATF Box
  • Choose Windows Phones option
  • Correct choose model : 710 : RM-803
  • Click on Phoenix INI (for automatically selected files)
  • Click on Factory Reset Option (for after full flash then automatically ATF box do full factory reset)
  • Now click on Flash button
  • If the Phone is ALIVE
    • Power On the Phone and Connect it to the USB Port
  • If the Phone is DEAD
    • Press and Hold the VOLUME UP button
    • Connect it to the USB Port while still Pressing the VOLUME UP button
    • Continue to Press the VOLUME UP button for 8 more seconds
  • Wait until full flash
  • You are done

Nokia Lumia 710 RM-803 Flash done with ATF Box screenshot:

Nokia Lumia 710 RM-803 Flash done with ATF Box Logs:
 ======================================================
        Windows Phone Lumia Flasher
 ======================================================
 If the Phone is ALIVE
  1. Power On the Phone and Connect it to the USB Port
 If the Phone is DEAD
  1. Press and Hold the VOLUME UP button
  2. Connect it to the USB Port while still Pressing
    the VOLUME UP button
  3. Continue to Press the VOLUME UP button for 8 more
    seconds
 ======================================================
 Sending OSBL Certificate
 HASH: C72DBA3ABED42215584093FA9DE247381D6062B4
 Certificate Size: 452 Bytes
 Status   : WRITE OSBL CERTIFICATE SUCCESS
 Sending OSBL Data Blocks
 [BLOCK 1 0x00000000~0x000EA227]
 Data Size: 0x000EA228 Bytes
 SHA-256 : 230DC86974519BE07B69E337C9F85A50
 ---------- : 9739D18813437F34B57702302888FD05
 Status   : OSBL WRITE SUCCESS
 Sending AMSS Certificate
 HASH: C72DBA3ABED42215584093FA9DE247381D6062B4
 Certificate Size: 449 Bytes
 Status   : WRITE AMSS CERTIFICATE SUCCESS
 Sending AMSS Data Blocks
 (Please Wait for 25 Seconds...)
 Status   : AMSS WRITE SUCCESS
 Sending ADSP Certificate
 HASH: C72DBA3ABED42215584093FA9DE247381D6062B4
 Certificate Size: 449 Bytes
 Status   : WRITE ADSP CERTIFICATE SUCCESS
 Sending ADSP Data Blocks
 (Please Wait for 25 Seconds...)
 Status   : ADSP WRITE SUCCESS
 Sending WPOS Certificate
 HASH: C72DBA3ABED42215584093FA9DE247381D6062B4
 Certificate Size: 1604 Bytes
 Status   : WRITE WPOS CERTIFICATE SUCCESS
 Sending WPOS Data Blocks
 [BLOCK 1 0x00000000~0x00FFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : 9A45D87CB5181683813DE72AD84FB2DA
 ---------- : 5E555D485F7CA0852D712833D7EF0CC4
 Status   : WPOS WRITE SUCCESS
 [BLOCK 2 0x01000000~0x016573FF]
 Data Size: 0x00657400 Bytes
 SHA-256 : E698D044D5E26A387961F6547EF78DD8
 ---------- : CECE31C03E6D168359E61048300B15B3
 Status   : WPOS WRITE SUCCESS
 [BLOCK 3 0x01697400~0x01FFFFFF]
 Data Size: 0x00968C00 Bytes
 SHA-256 : 0AB436F96A3C1AFD7C3683AC278327EA
 ---------- : 37A93FCBC537E490A27FB3BAEC71BC74
 Status   : WPOS WRITE SUCCESS
 [BLOCK 4 0x02000000~0x02FFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : DC4791FEA81D1ECAA0A1D93856AFC597
 ---------- : A909277718EEABFBAD79EC2C58714FAB
 Status   : WPOS WRITE SUCCESS
 [BLOCK 5 0x03000000~0x03FFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : CA07BF6CA3A84A57F31CCE95E9983C1F
 ---------- : 5EC6F56A694F62EBDFDFA0FB69A87518
 Status   : WPOS WRITE SUCCESS
 [BLOCK 6 0x04000000~0x04FFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : 704C6863ACB36F9BAE59391DB8C74780
 ---------- : B05C52C88000855B6EA75CD9312C170A
 Status   : WPOS WRITE SUCCESS
 [BLOCK 7 0x05000000~0x05FFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : 3BE8316051131CA87D7B1D77D85080D4
 ---------- : 628290B1235A570DB4FA45F3009058E9
 Status   : WPOS WRITE SUCCESS
 [BLOCK 8 0x06000000~0x06FFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : D5929779F03847496C38A1C4CCBBAEBC
 ---------- : 0026A61F91BA9472A688588D91619F19
 Status   : WPOS WRITE SUCCESS
 [BLOCK 9 0x07000000~0x07FFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : BE004554482B141DEA5826F3B6DCA0F3
 ---------- : FC01CB99500BFAE72E1EB695E597DBF9
 Status   : WPOS WRITE SUCCESS
 [BLOCK 10 0x08000000~0x08FFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : 4D5EE19F278BA298F7B4FD9BFD6BAA79
 ---------- : 5E38CB57C4E6D9693335FC4F79EA699B
 Status   : WPOS WRITE SUCCESS
 [BLOCK 11 0x09000000~0x09FFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : CE54DA2C03CD26E914D5E5915A0055F6
 ---------- : A477269CE893F5C18DBE154254960E58
 Status   : WPOS WRITE SUCCESS
 [BLOCK 12 0x0A000000~0x0AFFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : CAAF971D41D710D9E55A6B4B4CDC00F7
 ---------- : 0D4DA84ED38032AB11E23B9AFA78FEA5
 Status   : WPOS WRITE SUCCESS
 [BLOCK 13 0x0B000000~0x0BFFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : 973D8F846C0707048464A741B20CACEE
 ---------- : AAD1E6E0EF9FDCC6599DCE1C338DD9CA
 Status   : WPOS WRITE SUCCESS
 [BLOCK 14 0x0C000000~0x0CFFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : F1119448EC5734EAA299ED5AD2D1A5BD
 ---------- : 6A62877879E94D563F76D76D868EF833
 Status   : WPOS WRITE SUCCESS
 [BLOCK 15 0x0D000000~0x0DFFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : 10270AFAA4AB6AFBE72F4E5C6940C188
 ---------- : 25B42C702526596EBDBF8A238576277B
 Status   : WPOS WRITE SUCCESS
 [BLOCK 16 0x0E000000~0x0EFFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : A4DBABAD922D868D5B1D42CF198ABF4D
 ---------- : AAFD914556804D53A1171DF44E2DF551
 Status   : WPOS WRITE SUCCESS
 [BLOCK 17 0x0F000000~0x0FFFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : 47056D20908E1DB3B4D9DFA8F0EDB74F
 ---------- : C17257B3618445D1F876EE0DF01C8211
 Status   : WPOS WRITE SUCCESS
 [BLOCK 18 0x10000000~0x10FFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : 79C707B9E0AC2D9D308A8842690ADC14
 ---------- : D18EA62875CEECAE62FCF9EBFAE1E9E3
 Status   : WPOS WRITE SUCCESS
 [BLOCK 19 0x11000000~0x11FFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : 1A3132111306A33D15CF87F58EFFF612
 ---------- : 3DF706BB70F55F482BD25C03014A09DE
 Status   : WPOS WRITE SUCCESS
 [BLOCK 20 0x12000000~0x12FFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : F5C79FDA3E0ED2242043BFF817E07298
 ---------- : 69740DF2B61C66052EB41B10C31A71D7
 Status   : WPOS WRITE SUCCESS
 [BLOCK 21 0x13000000~0x13FFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : FDA090A28F1AA5FDE23747A699877B5A
 ---------- : F61D5DEC4A686B1C61D32CB9127EA336
 Status   : WPOS WRITE SUCCESS
 [BLOCK 22 0x14000000~0x14FFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : 5EF91CAC608699FA215B2ED57DC4342E
 ---------- : AAF81A812EAF1634DB579FF51B9CCE3A
 Status   : WPOS WRITE SUCCESS
 [BLOCK 23 0x15000000~0x15FFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : 47936AB819AD314EF94E75BFFA1288D6
 ---------- : 7ADD1552786729948ABEAC0A8221F3A5
 Status   : WPOS WRITE SUCCESS
 [BLOCK 24 0x16000000~0x16FFFFFF]
 Data Size: 0x01000000 Bytes
 SHA-256 : 9A4C24BAC56B28CC85A679AB179A9446
 ---------- : 3F238CACF776E2F3D89BB71702A7D1B0
 Status   : WPOS WRITE SUCCESS
 [BLOCK 25 0x17000000~0x17ABF5FF]
 Data Size: 0x00ABF600 Bytes
 SHA-256 : 7DF9CD529DD53F0D0A0D0D5781D20C5F
 ---------- : 657F44CD6B8C4820FAA4198C43E01C56
 Status   : WPOS WRITE SUCCESS
 Sending USER AREA ERASE Certificate
 HASH: C72DBA3ABED42215584093FA9DE247381D6062B4
 Certificate Size: 396 Bytes
 Status  : WRITE ERASE CERTIFICATE SUCCESS
 Erasing USER AREA
 Status  : ERASE SUCCESS
 Flashing Done!
 Total Flashing Time (Erase + Flashing) : 00:04:42

Nokia Lumia 710 RM-803 Flash done with ATF Box Video:
